Old Truck

This is a Lego model based around an old theme and does not exist in real life.
The model is very simple and was built within a few hours. The chassis is rear drive via a new type Lego diff and medium motor.
The battery box sits very neatly in the rear and is easily removed.

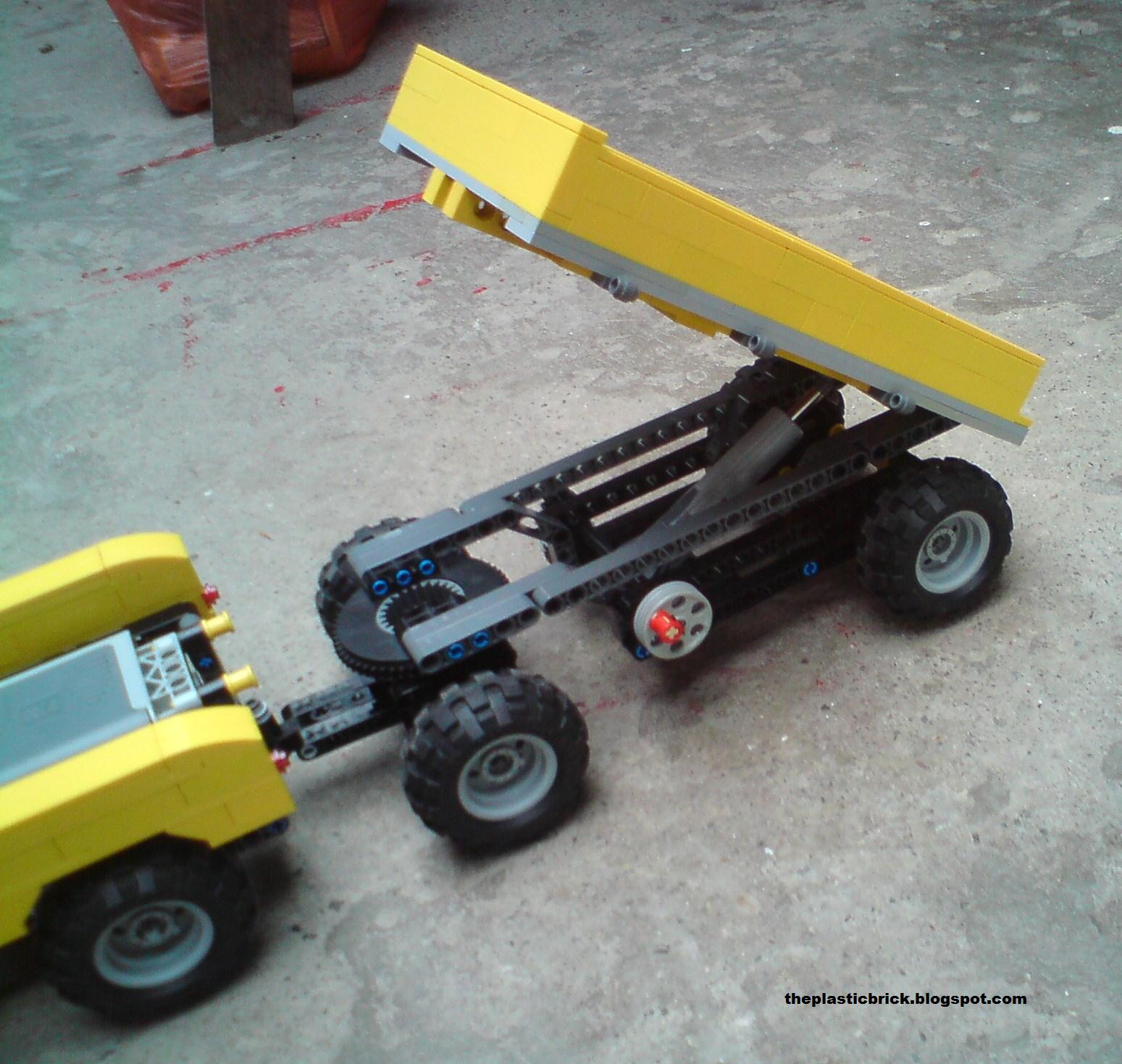

The trailer is also very simple with a turn table being used to steer the front axel. The bed is lifted by using the large type linear actuator.
Steering is done by rack and pinion and is powered by another medium motor, it will also self centre via the use of elastic bands.
click on the images to start the picture viewer.
